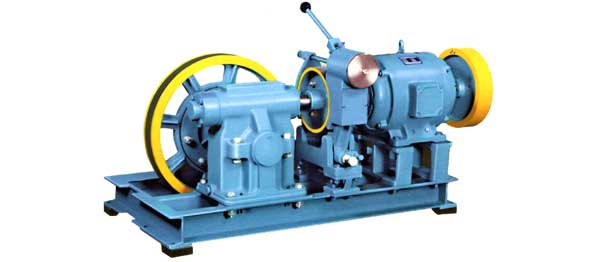

Elevator Traction Machine - Model : VENUS - 127
Constructive Characteristics:
• GEAR HOUSING : Made high-strength close grain quality cast iron as per is. 210
• WARM : Carburized and hardened high tensile strength steel, including a full control by magnetic particles. In order to assure the values of Pressure Angle, Pitch And (fr.) Worm Tested as per the norms under the keen inspection.
• CROWN GEAR : Made in Pb2c, phosphorus bronze centrifugal casting, to achive good strenght and perfact homogeneity of material structure with gear fracture and wear resistance for good sliding properties, shrink fitted and bolted with C.I. Center. We are manufacturing the worm wheel as per international standards to provide extra strength to the machine.
• WARM WHEEL SHAFT : In special alloy steel, hardened tempered and ground; Supported by an tiwear sleeve bearing.
• THE WHEEL & WARM : The wheel & Warm are perfectly mateched to minimized backless taking place.
• TRACTION SHEAVE : In high grade cast iron to achieve good strength & wear properties.
• BRAKE : Independently acting shoes provided according to the international rules, 110V D.C. Electromagnet.
• MOTOR : The main feature of motor is its high staring torque, low staring current and slip smooth accelerations and performance. In accordance to IS:8151; 1976 Specification.
