Elevator Traction Machine - Model : GE - 127

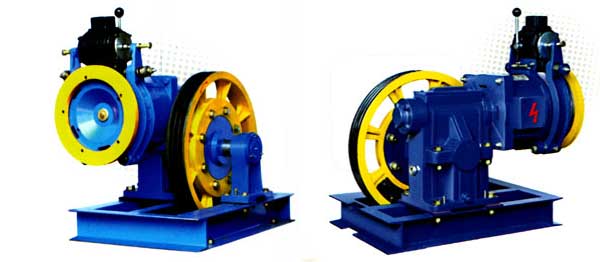

The Machine :
Keeping such a view, how to produce our same product qualifying higher in low cost for our Customers...
In lieu of this, we are proud to innovate and create the new designed elevator traction machines having Good Luck Engineering Co. branded which is attracting affordable cost with supreme quality maintaining.....
Features:
• Worm wheel nickel base phosphorus bronze to achieve more life..
• Graded cast Iron..
• Hardened alloy steel for shafts..
• Motor and Gear Flexible for easy maintenance..
• Low weight and easy installation..
• Traction Sheave 180 to 220 Brinell Hardness..
Constructive Characteristics:
• Max Load Capacity : 6 Passengers or 408 Kgs.
• Static Load Capacity : 3000 Kg.
• Rated Speed Maximum : 0.63m/s, Reduction
• Ratio : 41:1
• Gear Box O/p Torque Capacity : 921Nm @ Input Speed of 940 rpm.
• Motor Power and Speed : 3.7kw/ 940rpm, S.S. / VVVF, 350410V,3PH,50Hz S4 duty, Insulation Class 'F'
• Brake operating Mechanism : Electro Magnetic Type with suply DC 110V. / 220V
• Friction Sheave Size : Dia 530 x 3 Grooves x Rope Dia. 10 to 13mm
• Oil Capacity : 3Lits.
• Weight of Complete unit : 270 Kg.

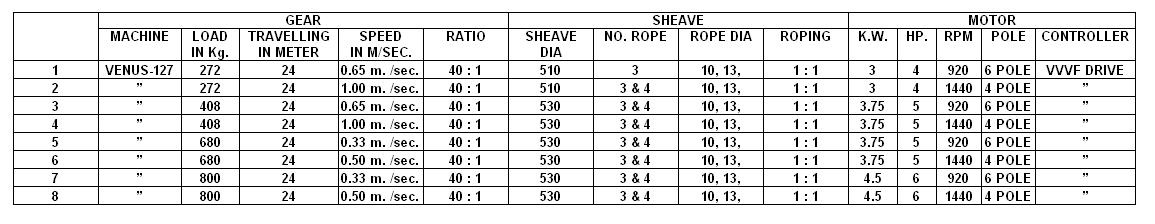

TECHMICAL SPECIFICATION

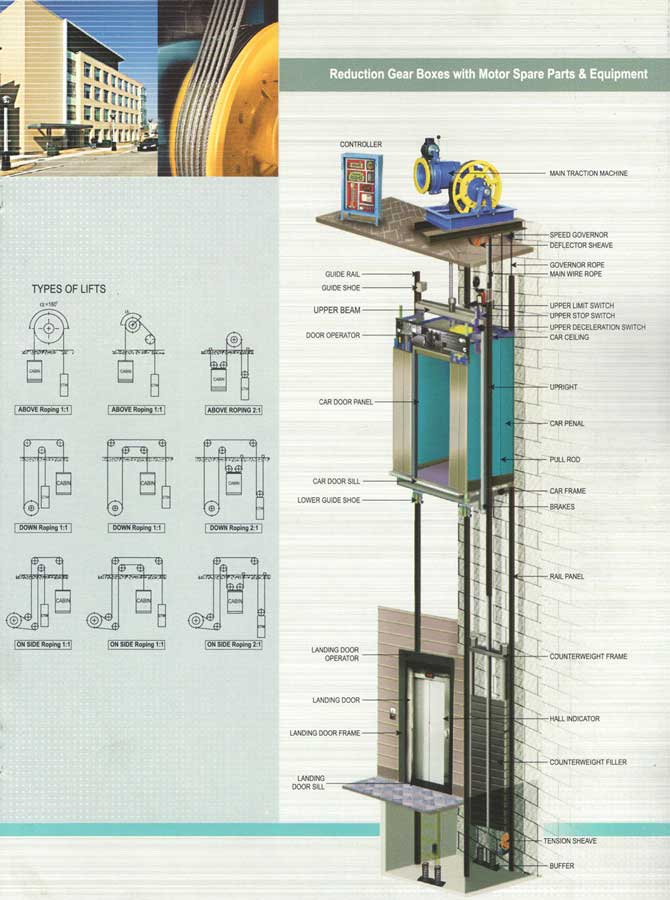

TRACTION MACHINE WORKING :
